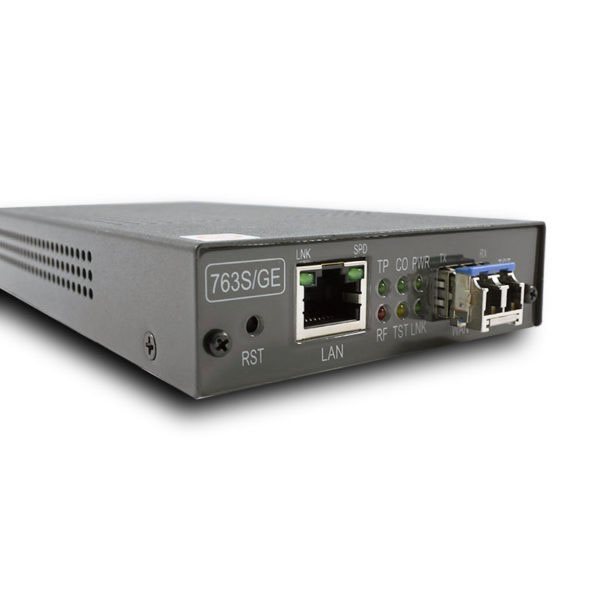

Tainet ENTU 763S/GE

Description

Model
- ENTU 763HS+/GE, industrial standalone Gigabit Ethernet NTU
Standalone and card type versions can be placed in CPE and
CO equipment.

Network Interface
- Connector type: SFP-LC
- 100Base-FX or 1000Base-X SFP port
P Support SFP DDM (Digital Diagnostic Monitoring): Compliant with
SFF-8472 SFP DDM (Digital Diagnostic Monitoring),
temperature, supply voltage, bias current, transmitted power,
received power
- 100BASE-FX with the transmission speed of 100Mbps,
1000BASE-FX with the transmission speed of 1000Mbps, singlecore bidirectional SFP module
- For detailed wavelength and distance of SFP modules, please
refer to SFP Transceivers datasheet

User Interface
- Connector type: Shield RJ-45 jack
- 10/100Base-Tx / 1000Base-T
- Auto-MDI/MDIX detection and Manual setting
- Auto-negotiation 10/100Base-TX for speed and Full duplex / Half
- Support 10/100/1000Base-T for speed and Full duplex
- Support copper line cable diagnostics feature
- Complies with IEEE 802.1q Tag VLAN (including Q-in-Q)
- Ethernet bandwidth control and support Jumbo frame

Management & OAM Functions
- Configuration via DIP switch
- Configuration via craft port VT-100 and WEB GUI
- Console: RJ45 connector (RS232C)
- HTTP firmware upgrade
- RMON counter
- Front panel test button for easy loop healthy testing
- Reset button back to factory default
- Support warning threshold for setting the upper and lower limit of
optical parameters. When parameters monitor reaches the limit,
it will send a warning message
